Berkeley Nucleonics Corporation (BNC) offers a variety of solutions for precise measurement and analysis, particularly in radiation detection and signal generation. These products are integral in sectors like nuclear energy, environmental safety, and industrial applications, supporting functions from radiation monitoring to field operations. BNC tools serve diverse needs in laboratory research, waste management, security, and healthcare, facilitating the detection of alpha/beta particles, neutron searches, and radionuclide analysis

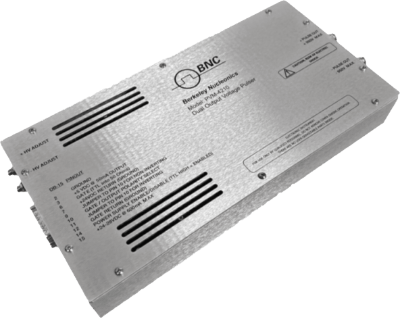

PVM-4210
±950V Pulse Generator Module
The PVM-4210 is a compact pulse generator module delivering dual differential voltage pulses, ideal for driving deflection plates in particle beam modulation for TOF mass spectrometers and accelerators. It offers fast rise/fall times, low power dissipation, and minimal overshoot.

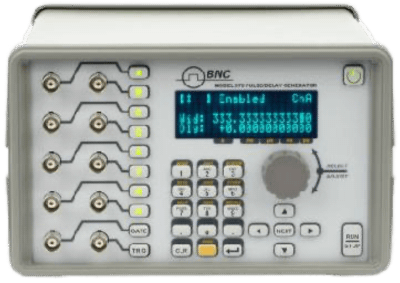

Model 575
0.001 Hz to 10 MHz Digital Delay / Pulse Generator
The Berkeley Nucleonics 500 series Delay Generators, including Model 575, offer high precision with 2, 4, or 8 independent outputs. Each channel’s delay and pulse width are digitally controlled, enabling synchronized pulses for various applications, making it highly versatile.

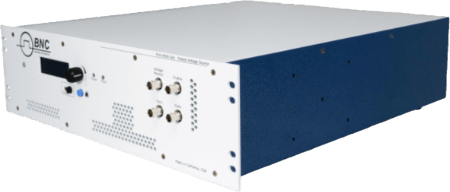

PVX-4000-2kV
Pulsed Voltage Source
The PVX-4000-2kV is a high-voltage pulse generator for high impedance capacitive loads, with 0–±2000 V output and 2–98% duty cycles. It supports 40 Hz to 30 kHz rates (with internal power), RS-232/USB control, external triggering, and a Sync output for easy integration.

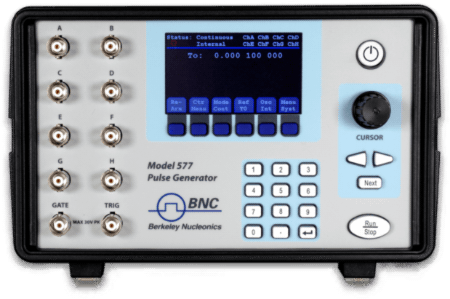

Model 577
Digital Delay / Pulse Generator
The Berkeley Nucleonics Model 577 is a precise pulse/delay generator with 4 or 8 independent outputs. It offers advanced time and amplitude control, optical/electrical I/O options, and independently controlled delays/pulse widths, ideal for complex multi-event synchronization.

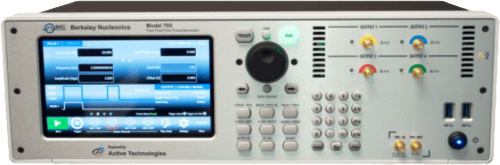

Model 765
Fast Rise Time Pulse Generator (up to 50V)
The Model 765 Pulse Generator offers up to 800 MHz frequency, 70 ps rise/fall times, and 50V signals (400 ps risetime). It features 4 channels, 300 ps pulse widths, and <25 ps jitter. Touchscreen GUI and advanced pulse sequences for versatile control.

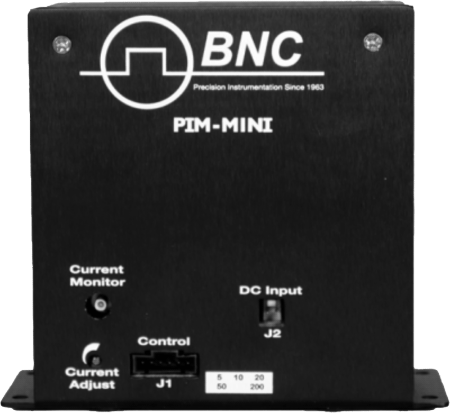

PIM-MINI-200
48V Compliance Voltage Pulsed Laser Diode Driver
The PIM-Mini-200 laser diode driver delivers 25–200 A with <8 µs rise/fall times, pulse widths of 25–250 µs, and 0–48 V forward voltage. It supports single shot to 20 Hz pulses, manual or analog current control, and 12–60 V DC power. Compact, flexible, and AC-free.
